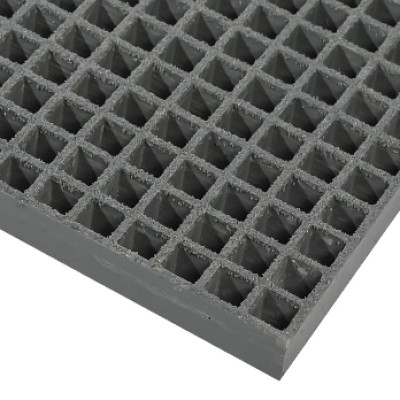

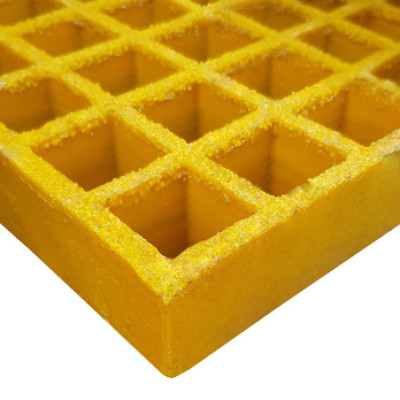

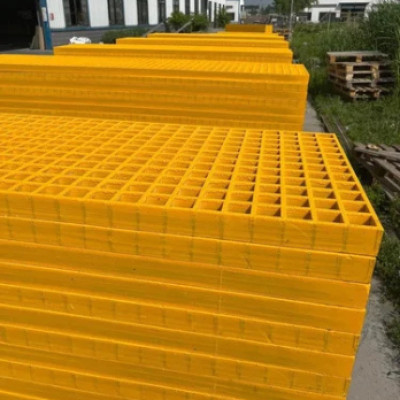

FRP Gratings
FRP Moulded Gratings & FRP Pultruded Gratings are composite gratings made of fiberglass reinforced with unsaturated polyester resin, offering excellent corrosion resistance, low maintenance, high strength-to-weight ratio, and long service life in harsh environments.
Applications:
• Offshore platforms
• Chemical plants

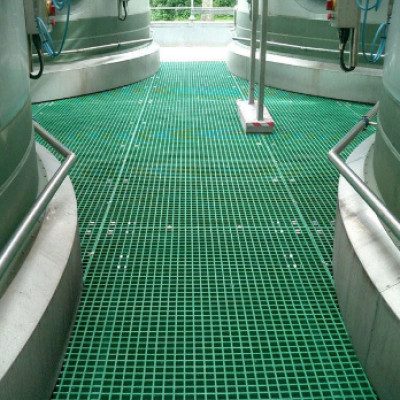

• Walkways & trench covers
• Cooling towers
• Marine environments
• Water & wastewater treatment plants
Key Features
• Corrosion resistant
• Fire retardant (optional)
• Non-conductive

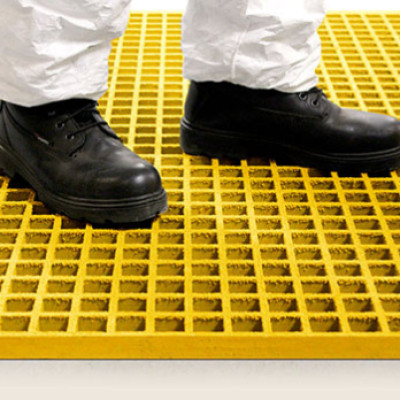

• Slip-resistant surface
• UV resistant
• Lightweight and strong
• Easy to fabricate and install
Technical Specifications
Parameter Details
Material Fiberglass reinforced with polyester/vinyl ester
Resin Type Isophthalic / Vinyl Ester
Mesh Type Square or Rectangular

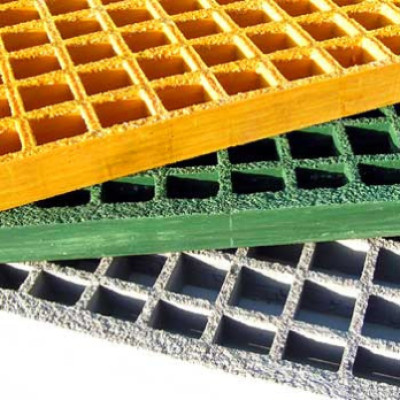

Surface Concave / Gritted / Smooth
Standard Panel Sizes 1220 × 3660 mm / 1000 × 3000 mm
Thickness 25 mm / 30 mm / 38 mm / 50 mm
Mesh Size 38×38 mm / 40×40 mm / 19×19 mm

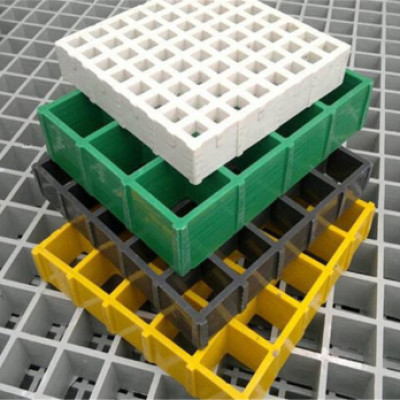

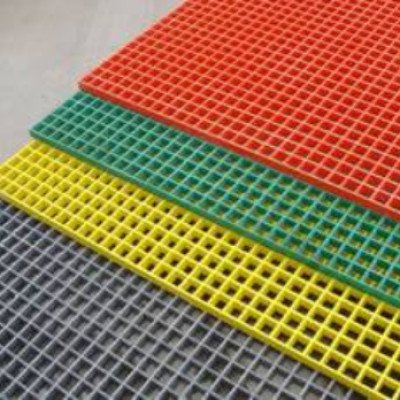

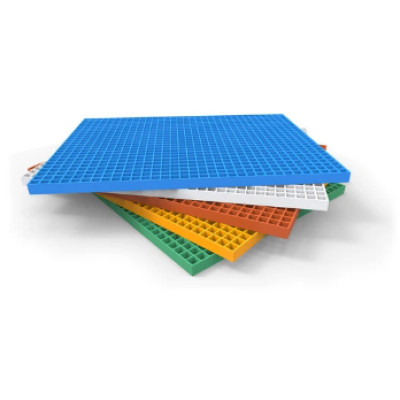

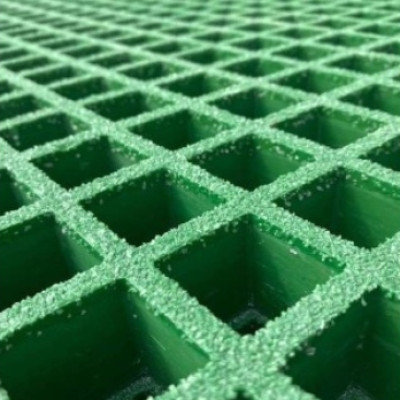

Color Yellow / Grey / Green / Custom
Fire Retardancy ASTM E84 Class 1 (optional)
Load Capacity As per ASTM F3059 / BS EN 124 standards
Available Types

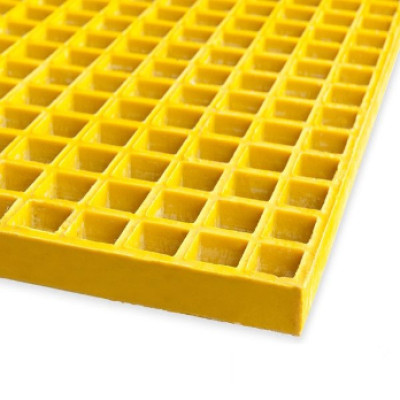

1. Square Mesh Grating
2. Mini Mesh Grating
3. Covered Top Grating
4. Heavy Duty Grating
5. Double Mesh Grating
Standards Following:
• ASTM D635
• ISO 9001:2015
• BS EN 13706
• ASTM E84 Fire Test (Class 1 on request)
Accessories & Fixings
• SS 316 Clips (M Clips, C Clips, L Clips)
• Framing Angles
• Sealing Plates
